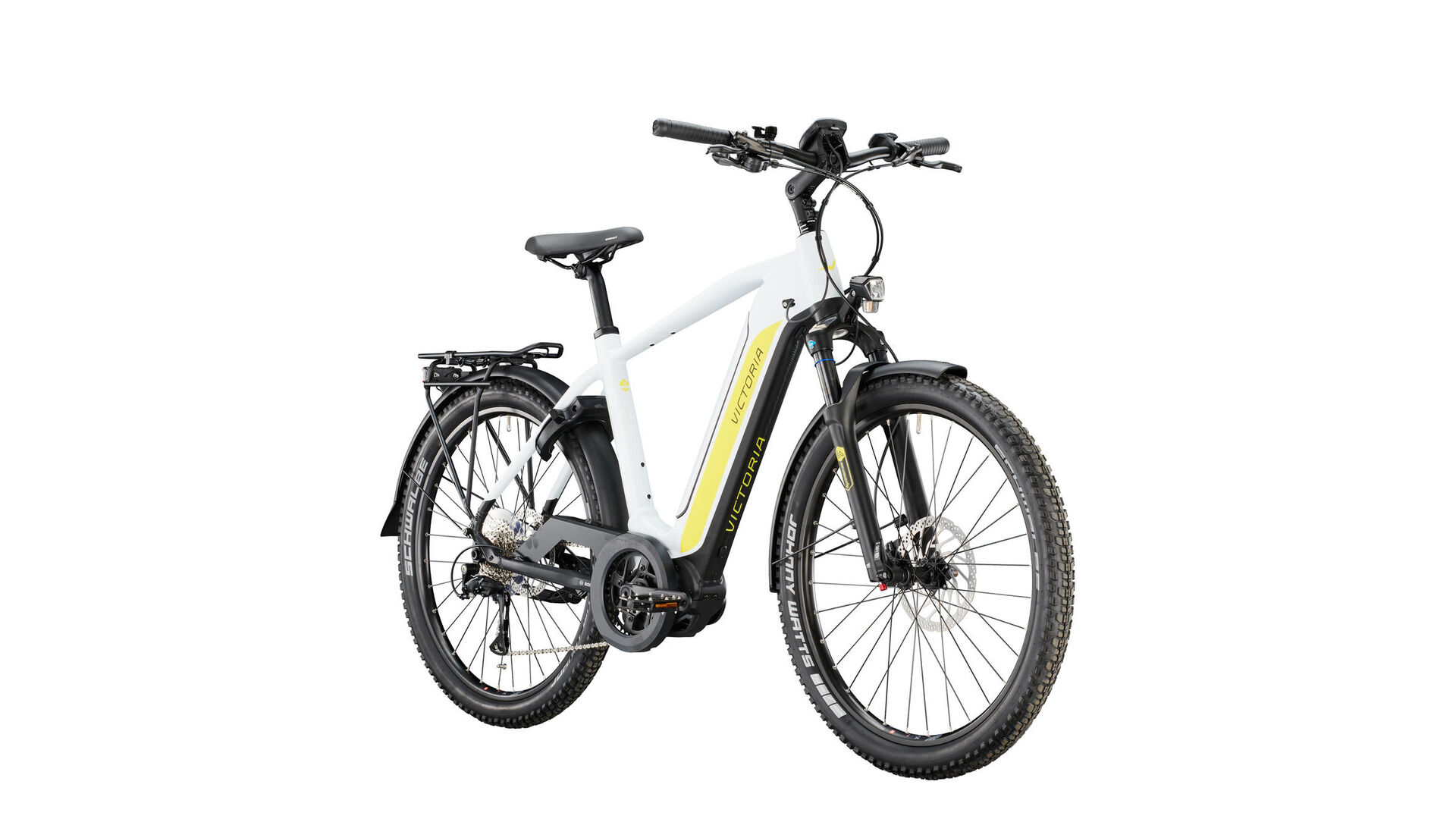

"eAdventure 12.6 diamond "
The entry-level model into the SUV pedelec world with BOSCH drive is the "eAdventure 12.6" from VICTORIA. The pedelec with the all-road genes is made for enduring bike tours off paved bike paths. In terms of style, it convinces with a fresh two-tone design and the reduced brand logo.
The high-torque BOSCH "Performance CX" motor guarantees full support with 85 Nm. It is powered by the BOSCH "PowerTube 500", which is fully integrated into the frame. The stable, hydraulic "BR-MT420" disc brakes from SHIMANO ensure safety when it goes steeply downhill again on the other side.
On tours, the BOSCH "Intuvia" display, which has its permanent place on the cockpit, provides information. Information such as speed and distance traveled can be easily read in all conditions - whether bright sunshine or cloudy skies. The SHIMANO 9-speed derailleur offers sufficient transmission bandwidth for extended tours in undulating terrain
As with all VICTORIA bikes, the developers have also made comfort a priority here. First and foremost, it is the air-suspended SUNTOUR fork, which smoothes out bumps with a travel of 100mm. It can be individually adjusted to the rider and can also be locked on slippery roads.
The 60mm wide "Johnny Watts" tires from SCHWALBE offer optimal grip on forest and meadow paths and thanks to the reflective strip also a plus in safety in the dark.
A MIK rack for luggage, CURANA fenders that keep out splashing water and stone chips and the CONTEC "Powerlock" lock round off the equipment of the "eAdventure 12.6".
The high-torque BOSCH "Performance CX" motor guarantees full support with 85 Nm. It is powered by the BOSCH "PowerTube 500", which is fully integrated into the frame. The stable, hydraulic "BR-MT420" disc brakes from SHIMANO ensure safety when it goes steeply downhill again on the other side.
On tours, the BOSCH "Intuvia" display, which has its permanent place on the cockpit, provides information. Information such as speed and distance traveled can be easily read in all conditions - whether bright sunshine or cloudy skies. The SHIMANO 9-speed derailleur offers sufficient transmission bandwidth for extended tours in undulating terrain
As with all VICTORIA bikes, the developers have also made comfort a priority here. First and foremost, it is the air-suspended SUNTOUR fork, which smoothes out bumps with a travel of 100mm. It can be individually adjusted to the rider and can also be locked on slippery roads.
The 60mm wide "Johnny Watts" tires from SCHWALBE offer optimal grip on forest and meadow paths and thanks to the reflective strip also a plus in safety in the dark.
A MIK rack for luggage, CURANA fenders that keep out splashing water and stone chips and the CONTEC "Powerlock" lock round off the equipment of the "eAdventure 12.6".
Specifications "Victoria eAdventure 12.6 diamond (2022)"
Frame: | Bosch-Intube-SUV-Frame, Aluminium 6061 |
Fork: | SUNTOUR "SF21-MOBIE34 AIR", einstellbar, Lockout, 100mm |
Crank arm: | FSA "CK-745", Gen.4 |
Chain ring / belt ring: | FSA, 42T, megatooth |
Bottom Bracket: | BOSCH |
Brakes: | SHIMANO "BR-MT420/410" |
Brake lever: | SHIMANO "BR-MT401" |
Front rotor: | SHIMANO "SM-RT30", 203mm, Center-Lock |
Rear rotor: | SHIMANO "SM-RT30", 180mm, Center-Lock |
Shifting lever: | SHIMANO "SL-M3100-R" |
Rear derailleur: | SHIMANO "Alivio RD-T3000" |
Cassette / belt sprocket: | SUNRACE "CSM989" 11-36 Z. silver |
Chain / belt: | KMC "X9E" |
Drive unit: | BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W |
Battery: | BOSCH "Powertube 500", Lithium-Ionen mit BMS, 500 Wh |
Charger: | BOSCH 2 Ah |
Display: | BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe |
Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
Rims: | MACH 1 "MAXX" |
Spokes: | 2,0 mm, Niro, black |
Front hub: | SHIMANO "HB-MT400", QR 15, Disc, Center Lock |
Rear hub: | SHIMANO "FH-Mt400 ", Disc |
Front tires: | SCHWALBE "Johnny Watts", 60-584, Reflex |
Rear tires: | SCHWALBE "Johnny Watts", 60-584, Reflex |
Handle bar: | CONTEC "Mito 60", Breite 680 mm, Rise 15 mm, 15° Backsweep |
Stem: | CONTEC "Lida", 31,8 mm, 90 mm, Ahead, verstellbar, schwarz |
Grips: | CONTEC "Tour Wing Eco" |
Saddle: | SELLE ROYAL "Lift" Italy, Moderate Male |
Seat post: | ERGOTEC Patent "Viper", Ø 31,6 mm, 10mm Setback, Alu, black |
Chain guard: | CURANA "Chainguard" |
Mud Guards: | CURANA "Apollo", 70mm, schwarz matt, Spoiler |
Carrier: | MIK-ALU-GEPÄCKTRÄGER "TA7652A" MIK-System |
Front light: | CONTEC "Dlux 50 E+" 50 Lux |
Tail light: | CONTEC „TL-335 E-Stop“, mit Stoplicht |
Frame Lock: | CONTEC "Powerloc XL AZ" |
Kickstand: | URSUS "King2", für Victoria Hinterbau, 40 mm, verstellbar |
Pedals: | VP "VP-531E", Alu, |
Technical data
Category: | trekking bike |
E-bike: | yes |
Bosch Smart System: | no |
Drive system: | Bosch |
Drive version: | middle motor |
Battery capacity: | 500 Wh |
Support: | till 25km/h |
Sex: | gents |
Frame shape: | diamond |
Frame size: | S |
Frame height: | 48 cm |
Wheel size: | 27,5" |
Drive: | chain drive |
Shifting type: | derailleur |
Gears: | 9-speed |
Transmission: | 1x 9-fach |
Circuit brand: | Shimano |
Shifting model: | Alivio |
Brake system: | hydraulic disc brake |
Travel: | 100 mm |
Features: | fender |
Permissible total weight: | 140 kg |
Material: | aluminium |
Type: | Article |
Colour: | white, yellow, black |
Colour designation: | snow white matt |
Weight: | 29,30 kg |
EAN | 4251507987011 |
Geometry data "Victoria eAdventure 12.6 diamond (2022)"
Seat tube: | 480 mm |
Toptube: | 617 mm |
Steering tube angle: | 69° |
Seat angle: | 73° |
Kettenstrebe: | 467 mm |
Steering tube: | 160 mm |
Reach: | 415 mm |
Stack: | 651 mm |
Standover height: | 750 mm |
Wheel distance: | 1.160 mm |
Length: | 1.900 mm |
