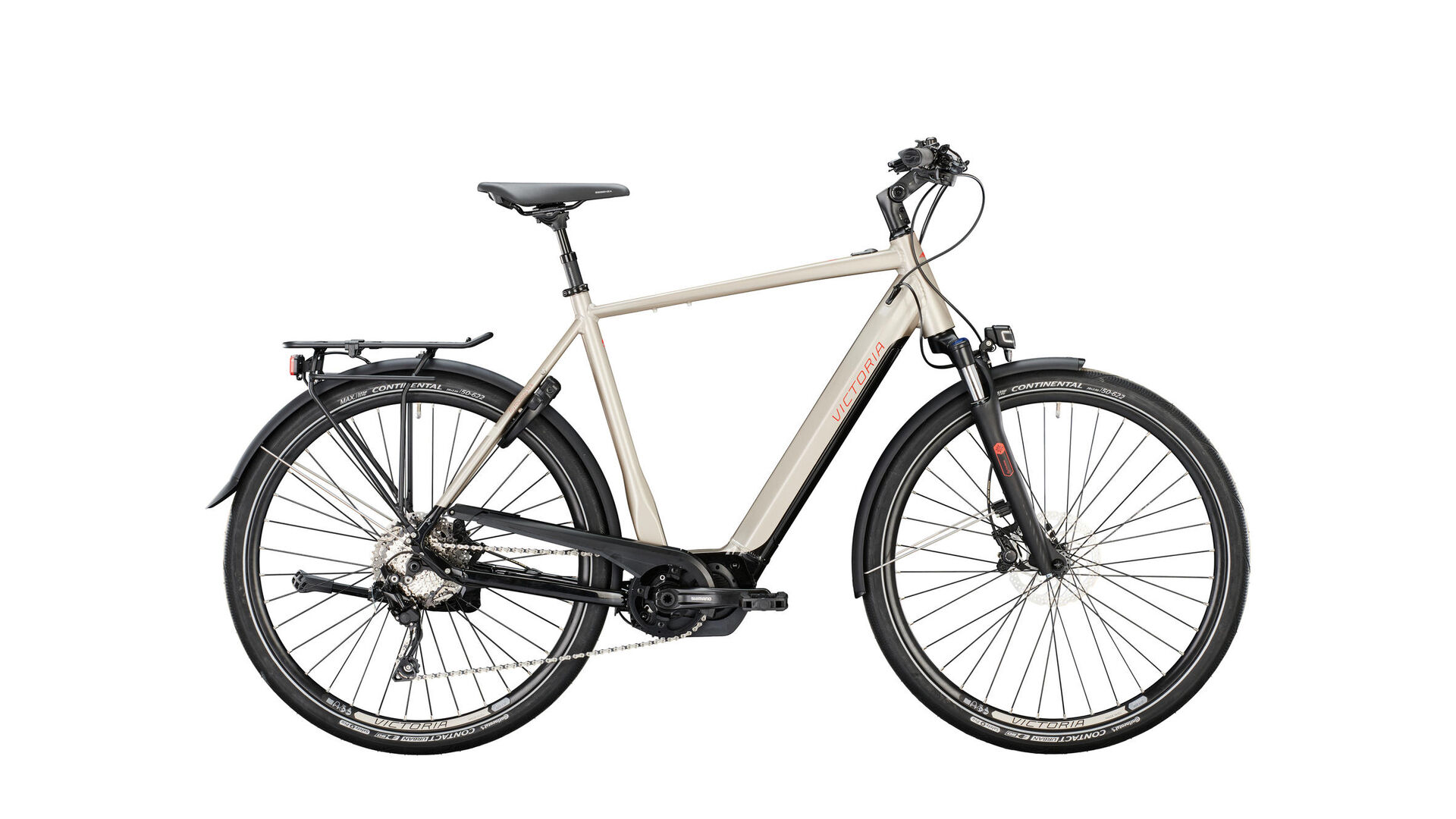

"eTouring 12.8 diamond "
Tidy appearance meets comfortable equipment
The "eTouring 12.8" is the perfect companion for a ride through the fields after work or for long weekend tours. Thanks to its flat design, the SHIMANO "STEPS E7000" engine nestles neatly into the frame. The 504 Wh "InTube" battery is also fully integrated into the frame. The look is tidy and modern - not least thanks to the minimalist VICTORIA lettering and the new two-tone design.
Shifters are SHIMANO 10-speed "Deore", which is designed for steep climbs and fast descents with its gear ratio and gear gradation. The Linkglide technology makes it much crisper to operate. Wear becomes noticeable more slowly. Powerful hydraulic Disc Brakes, also from the Japanese manufacturer, ensure the right level of safety in precisely such scenarios.
Where uneven ground is to be expected, suspension components provide damping. On the "eTouring 12.8", these are the seatposts and the Fork. The latter has a suspension travel of 63 mm and can be locked if necessary. The wide CONTINENTAL tires support the comfort aspect, but also ensure good traction and cornering grip thanks to their tread pattern.
For the all-round carefree package, the e-bike is equipped with a MIK system carrier, very bright LED lighting and Fenders. This makes the eTouring 12.8 not only a great touring companion, but also a reliable partner when it comes to short distances within the city.
The "eTouring 12.8" is the perfect companion for a ride through the fields after work or for long weekend tours. Thanks to its flat design, the SHIMANO "STEPS E7000" engine nestles neatly into the frame. The 504 Wh "InTube" battery is also fully integrated into the frame. The look is tidy and modern - not least thanks to the minimalist VICTORIA lettering and the new two-tone design.
Shifters are SHIMANO 10-speed "Deore", which is designed for steep climbs and fast descents with its gear ratio and gear gradation. The Linkglide technology makes it much crisper to operate. Wear becomes noticeable more slowly. Powerful hydraulic Disc Brakes, also from the Japanese manufacturer, ensure the right level of safety in precisely such scenarios.
Where uneven ground is to be expected, suspension components provide damping. On the "eTouring 12.8", these are the seatposts and the Fork. The latter has a suspension travel of 63 mm and can be locked if necessary. The wide CONTINENTAL tires support the comfort aspect, but also ensure good traction and cornering grip thanks to their tread pattern.
For the all-round carefree package, the e-bike is equipped with a MIK system carrier, very bright LED lighting and Fenders. This makes the eTouring 12.8 not only a great touring companion, but also a reliable partner when it comes to short distances within the city.
Specifications "Victoria eTouring 12.8 diamond (2022)"
| Frame: | Full-Integrated-Steps-Frame Aluminium 6061 |
| Dropout: | Slider Dropout |
| Fork: | SUNTOUR "SF19-NEX E25 NLO", einstellbar, Lockout, 63mm |
| Crank arm: | SHIMANO "FC-E8000", 175mm, schwarz |
| Chain ring / belt ring: | SHIMANO "SM-CRE70", 38 Z. |
| Bottom Bracket: | SHIMANO |
| Brakes: | SHIMANO "BR-MT501" |
| Brake lever: | SHIMANO "BL-MT501" |
| Front rotor: | SHIMANO "SM-RT30", 180mm, Center Lock |
| Rear rotor: | SHIMANO "SM-EM300", 160mm, Center-Lock |
| Shifting lever: | SHIMANO "Deore SL-M5130-R10" |
| Rear derailleur: | SHIMANO "Deore RD-M5130" |
| Cassette / belt sprocket: | SHIMANO "CS-LG600-10" 11-43 Z. |
| Chain / belt: | SHIMANO "CN-LG500" |
| Drive unit: | SHIMANO Mittelmotor "E7000", 250 W Nenn-Dauerleistung |
| Battery: | SHIMANO Lithium-Ionen mit BMS, 36 V, 14 Ah, 504 Wh |
| Charger: | SHIMANO 2 Ah |
| Remote: | SHIMANO "SW-E6010L" |
| Display: | SHIMANO "SC-E6100" LCD, Bluetooth, Remote Control |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | Hohlkammer "X-6 DISC", Alu |
| Spokes: | 2,0 mm, Niro, black |
| Front hub: | SHIMANO "HB-MT200", 36 L., QR, Disc, Center Lock |
| Rear hub: | SHIMANO "FH-MT400", 32 L., 12mm, Disc, Center-Lock |
| Front tires: | CONTINENTAL "Contact Urban", 50-622, Reflex |
| Rear tires: | CONTINENTAL "Contact Urban", 50-622, Reflex |
| Handle bar: | ERGOTEC "Low Riser Bar", 720 mm, Ø 31,8 mm, schwarz |
| Stem: | ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm |
| Grips: | CONTEC "Tour Wing" |
| Saddle: | SELLE ROYAL "ESSENZA" Italy, Moderate Male |
| Seat post: | ERGOTEC Patent "SP10", gefedert, Ø 27,2 mm, Alu |
| Chain guard: | HESLING "Velo", Steps, schwarz matt |
| Mud Guards: | CURANA "Apollo", 60mm, schwarz matt, Spoiler |
| Carrier: | MIK-ALU-GEPÄCKTRÄGER "TA7653A" MIK-System |
| Front light: | CONTEC "Dlux 80 E+" 80 Lux |
| Tail light: | CONTEC „TL-335 E-Stop“, mit Stoplicht |
| Frame Lock: | CONTEC "Powerloc M AZ" |
| Kickstand: | URSUS "King2", für Victoria Hinterbau, 40 mm, verstellbar |
| Pedals: | UNION "SP-828", Alu, Antislip |
Technical data
| Category: | trekking bike |
| E-bike: | yes |
| Bosch Smart System: | no |
| Drive system: | SHIMANO STEPS E7000 |
| Drive version: | middle motor |
| Battery capacity: | 504 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 50 cm |
| Wheel size: | 28" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 10-speed |
| Transmission: | 1x 10-fach |
| Circuit brand: | Shimano |
| Shifting model: | Deore |
| Brake system: | hydraulic disc brake |
| Travel: | 63 mm |
| Features: | suspension fork, suspensed seat post, frame lock, system carrier, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 140 kg |
| Material: | aluminium |
| Type: | Article |
| Colour: | grey |
| Colour designation: | good grey |
| Weight: | 27,70 kg |
| EAN | 4251507987837 |
Geometry data "Victoria eTouring 12.8 diamond (2022)"
| Seat tube: | 500 mm |
| Toptube: | 630 mm |
| Steering tube angle: | 69° |
| Seat angle: | 75° |
| Kettenstrebe: | 470 mm |
| Steering tube: | 175 mm |
| Reach: | 454 mm |
| Stack: | 640 mm |
| Standover height: | 801 mm |
| Wheel distance: | 1.185 mm |
| Length: | 1.936 mm |
