"Avyon 10 wave "

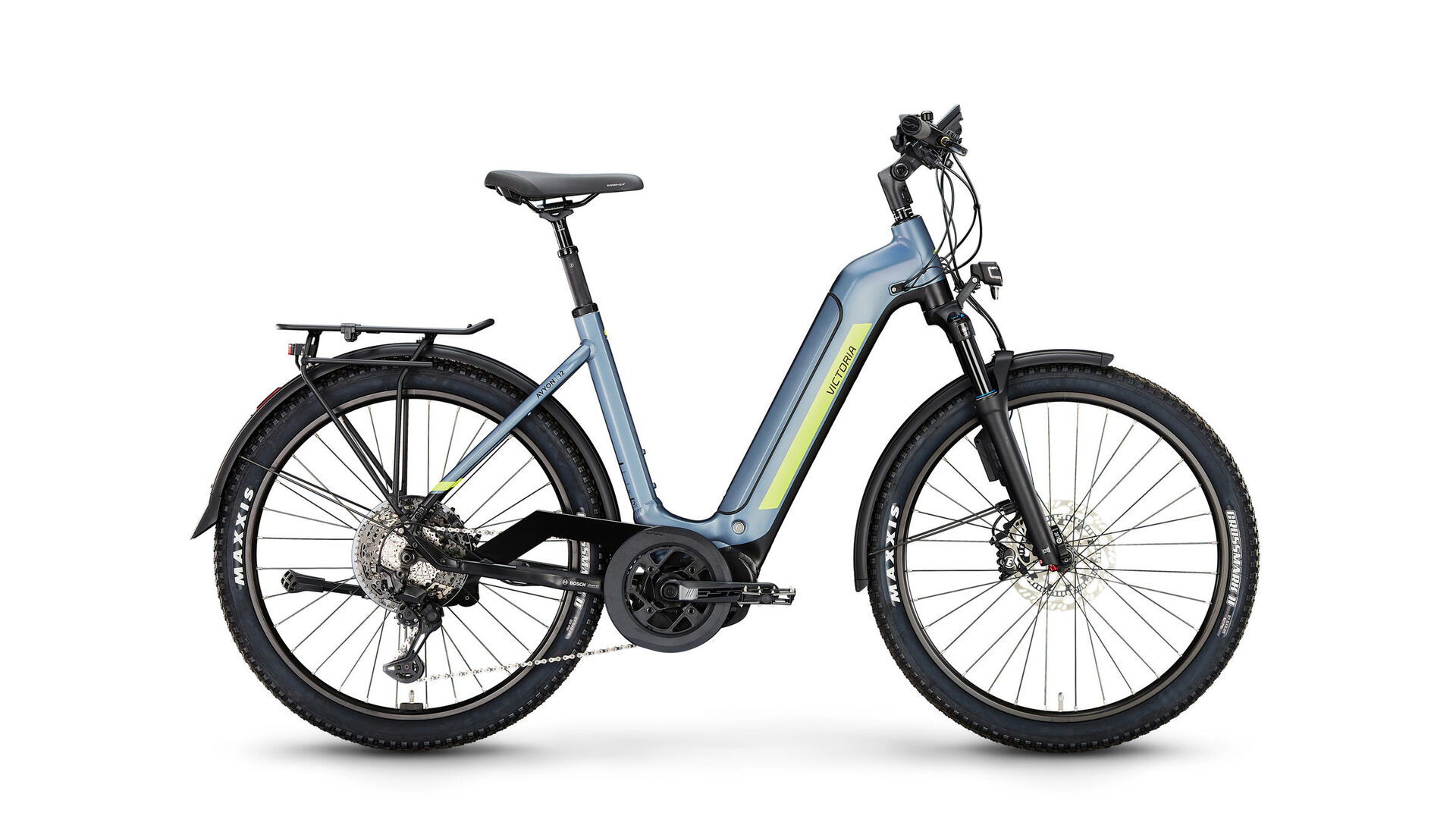

Based on the AVYON 12, the "AVYON 10" differs only in its anti-lock braking system—which is not specified here—and its suspension Seatpost, which cannot be lowered. Otherwise, it is technically identical to the top-of-the-line model.
The Bosch Smart System combination—featuring the Performance CX drive, PowerTube 750, and Kiox 300 color display—represents the drive manufacturer’s current state-of-the-art technology and therefore makes perfect sense in our premium overlander.
Added to this is the eFlow app, which pairs easily with the Bosch Smart System and offers a wide array of additional features. These include, among other things, access to navigation services from Strava or Komoot. Riders switching to the Smart System will be thrilled by the new possibilities, as the bike doesn’t just want to be ridden—it now literally invites you to ride it.
The “AVYON 10” is also available in two frame versions. As with all new VICTORIA models, the integrated batteries are removed from the top for charging. This means there’s no risk of them falling out if handled improperly. However, given the high capacity and the resulting weight of the batteries, we recommend charging them directly on the bike whenever possible—whether at home or on the go.
The Bosch Smart System combination—featuring the Performance CX drive, PowerTube 750, and Kiox 300 color display—represents the drive manufacturer’s current state-of-the-art technology and therefore makes perfect sense in our premium overlander.
Added to this is the eFlow app, which pairs easily with the Bosch Smart System and offers a wide array of additional features. These include, among other things, access to navigation services from Strava or Komoot. Riders switching to the Smart System will be thrilled by the new possibilities, as the bike doesn’t just want to be ridden—it now literally invites you to ride it.
The “AVYON 10” is also available in two frame versions. As with all new VICTORIA models, the integrated batteries are removed from the top for charging. This means there’s no risk of them falling out if handled improperly. However, given the high capacity and the resulting weight of the batteries, we recommend charging them directly on the bike whenever possible—whether at home or on the go.
Specifications "Victoria Avyon 10 wave (2025)"
| Frame: | Bosch-Intube-SUV-Frame, Aluminium 6061 |
| Fork: | SUNTOUR "SF21-MOBIE34 AIR", einstellbar, Lockout, 100mm |
| Crank arm: | FSA "CK-745", Gen.4 |
| Chain ring / belt ring: | FSA, 42T, megatooth |
| Bottom Bracket: | BOSCH |
| Brakes: | SHIMANO "BR-MT420/410" |
| Brake lever: | SHIMANO "BR-MT401" |
| Front rotor: | SHIMANO "SM-RT30", 203mm, Center-Lock |
| Rear rotor: | SHIMANO "SM-RT30", 180mm, Center-Lock |
| Shifting lever: | SHIMANO "Cues" |
| Rear derailleur: | SHIMANO "Cues" |
| Cassette / belt sprocket: | SHIMANO "Cues" |
| Chain / belt: | SHIMANO "CN-LG500" |
| Drive unit: | BOSCH "Performance CX", 36 V, 250 W |
| Battery: | BOSCH "PowerTube 750" 750 Wh |
| Charger: | BOSCH 4 Ah |
| Remote: | BOSCH, "BRC3600" LED Remote |
| Display: | BOSCH, "Kiox 300" 4-Stufen, Remote Control, Schiebehilfe |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | MACH 1 "MAXX" |
| Spokes: | 2,0 mm, Niro, black |
| Front hub: | SHIMANO "HB-MT400", OLD 100 mm, 15mm, Disc, Center Lock |
| Rear hub: | SHIMANO "FH-MT400-B ", Disc |
| Front tires: | MAXXIS "Rekon", 61-584, Reflex |
| Rear tires: | MAXXIS "Rekon", 61-584, Reflex |
| Handle bar: | ERGOTEC "Low Riser Bar", 720 mm, Ø 31,8 mm, schwarz |
| Stem: | ERGOTEC "Sepia 50", Ø31,8 mm, verstellbar, schwarz, 90mm |
| Grips: | CONTEC "G-Link MTB Smol Wing" |
| Saddle: | SELLE ROYAL "Explora" Italy, Moderate |
| Seat post: | ERGOTEC Patent "Viper", Ø 31,6 mm, 10mm Setback, Alu, black |
| Chain guard: | CURANA "Chainguard" |
| Mud Guards: | CURANA "Apollo", 70mm, schwarz matt, Spoiler |
| Carrier: | MIK-ALU-GEPÄCKTRÄGER "TA7652A" MIK-System |
| Front light: | CONTEC "Dlux 80 E+" 80 Lux |
| Tail light: | CONTEC „TL-335 E-Stop“, mit Stoplicht |
| Frame Lock: | CONTEC "Powerloc XL AZ" |
| Kickstand: | URSUS "King2", für Victoria Hinterbau, 40 mm, verstellbar |
| Pedals: | VP "VP-531E", Alu, |
Technical data
| Category: | SUV |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 750 Wh |
| Support: | till 25km/h |
| Sex: | ladies |
| Frame shape: | wave |
| Frame size: | S |
| Frame height: | 46 cm |
| Wheel size: | 27,5" |
| Shifting type: | derailleur |
| Gears: | 11-speed |
| Transmission: | 1x 11-fach |
| Circuit brand: | Shimano |
| Shifting model: | Cues |
| Brake system: | hydraulic disc brake |
| Travel: | 100 mm |
| Features: | suspension fork, system carrier, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 140 kg |
| Material: | aluminium |
| Colour: | black |
| Colour designation: | anthracite grey matt |
| Weight: | 29,40 kg |
| EAN | 4251971151734 |
Geometry data "Victoria Avyon 10 wave (2025)"
| Seat tube: | 460 mm |
| Toptube: | 599 mm |
| Steering tube angle: | 69° |
| Seat angle: | 73° |
| Kettenstrebe: | 467 mm |
| Steering tube: | 150 mm |
| Reach: | 400 mm |
| Stack: | 650 mm |
| Standover height: | 420 mm |
| Wheel distance: | 1.137 mm |
